Control of labels, batches and barcodes
This camera system is used for the inspection of the correct labeling of the bottles. We offer several possibilities to carry out this check, both in line and directly inside the labeller. In order to carry out the on-line check, the containers must be oriented.
For the control on the carousel we have developed an advanced system which, through a single camera, allows total control of all the labels, making it less invasive!
Using a high-resolution camera and specific illuminators, it checks the correct positioning of the label as well as its integrity and correctness. Also used for batch and barcode inspection. It can consist of multiple cameras (up to six) to control multiple labels at the same time. It can be connected to ejection systems thus giving the opportunity to discard non-compliant containers.
Main functions
- Label presence detection
- Detection of correct positioning and integrity

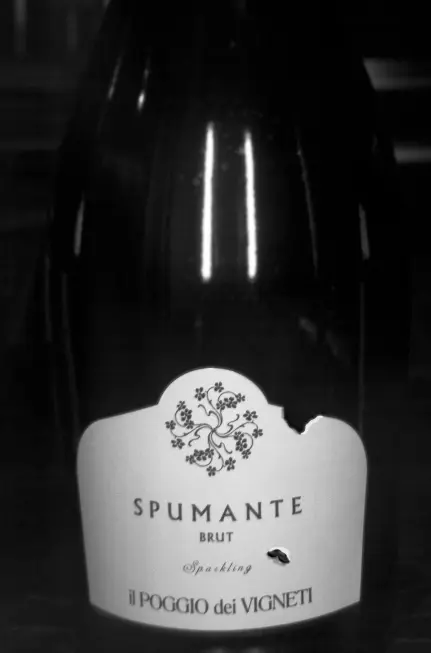

- Rotated label detection or label with tears and creases
- Detection of double writing and stains on labels
- Complete statistical management of production
- Password protected data
- Storage of all data for each format
- Easy to use touch screen interface
Optional

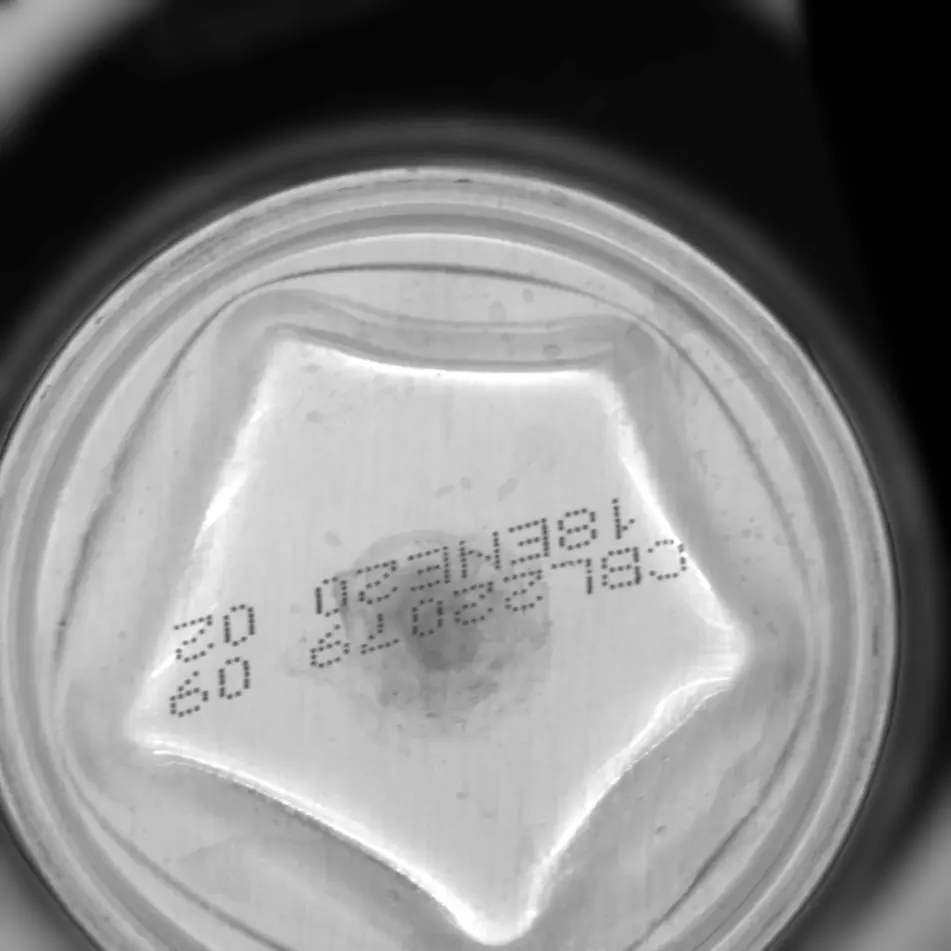

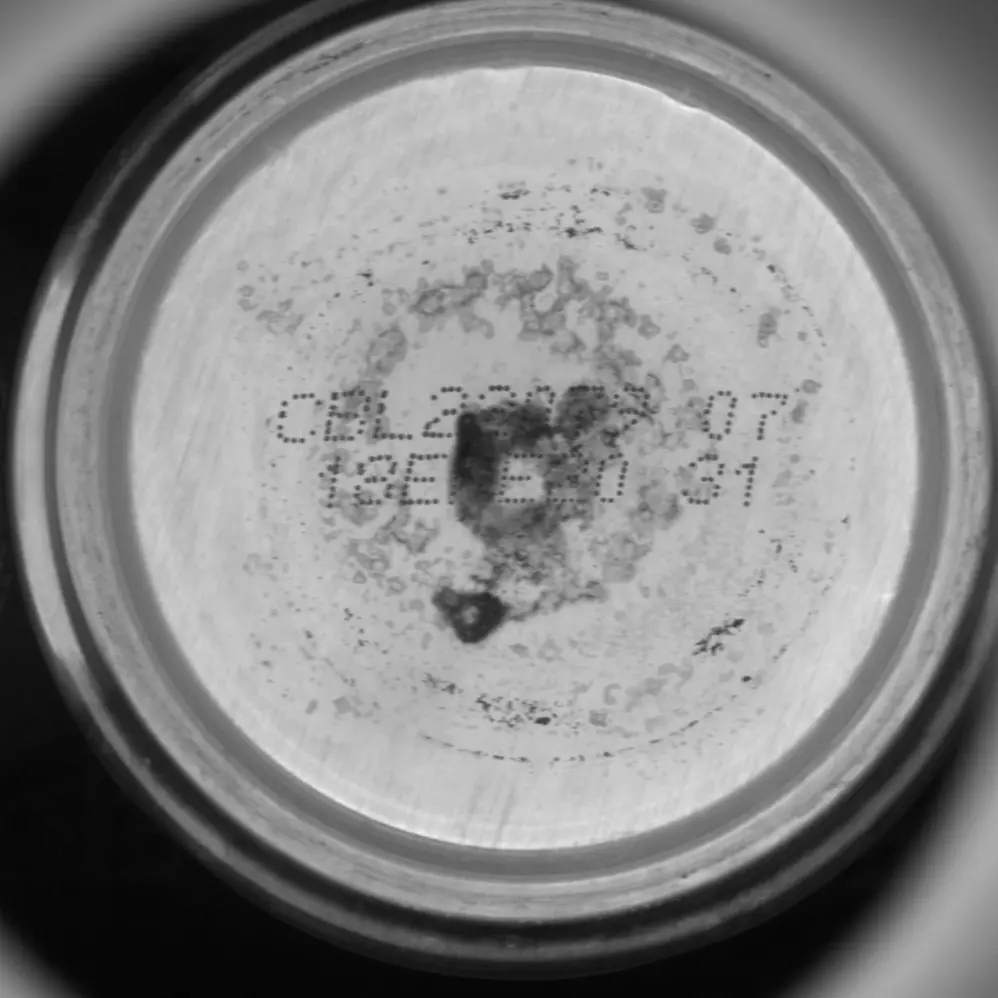

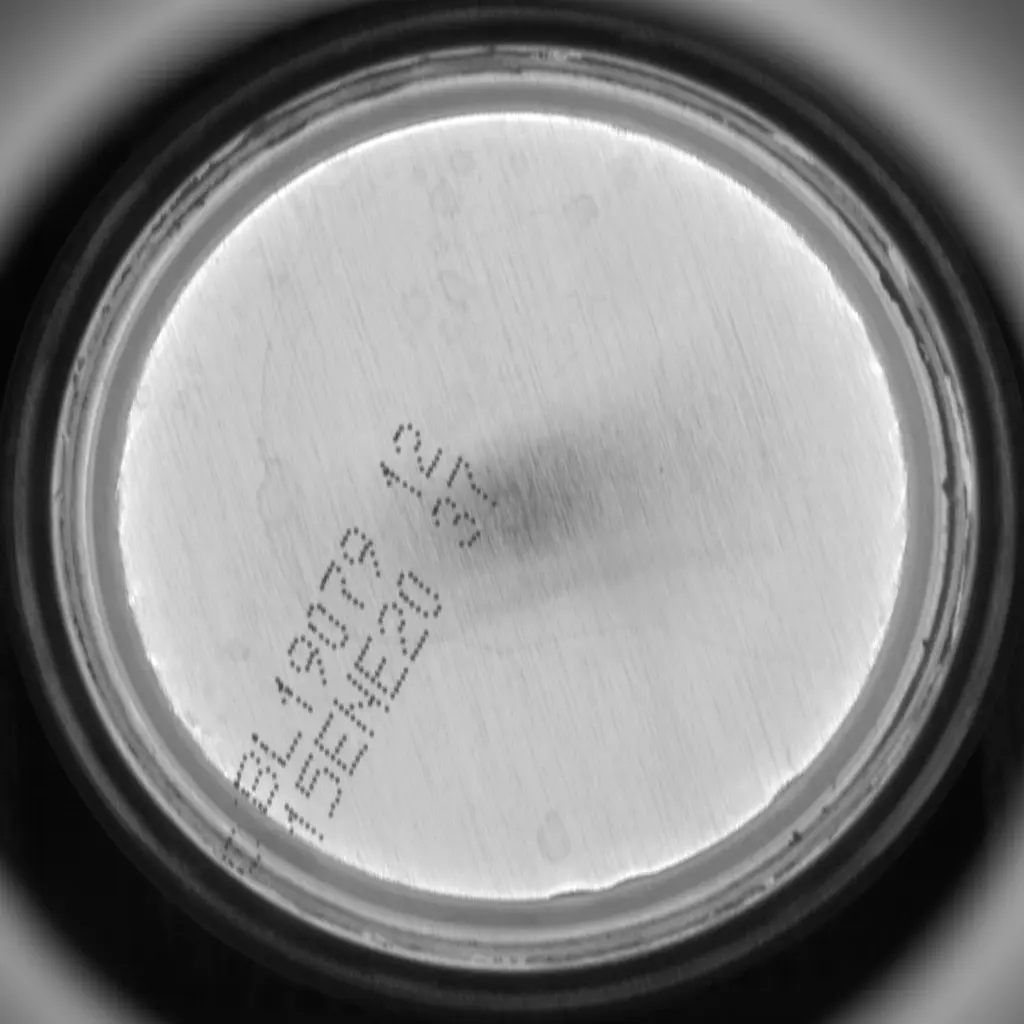

- Detection of presence and reading of lot codes, barcodes and 2D datamatrix codes
- Add up to six cameras and their controls
- Communication with ejection system
- Remote assistance via TeamViewer
| Data sheet | |
|---|---|
| Supply | 230 Vac 50-60Hz + Ground |
| Absorbed power | 500W |
| Operating temperature | 0 - 45 C° |
| Weight | 100 Kg |
| Display | TFT 15" Touch screen |
| Control resolution | starting from 1.3 megapixels |
| Type of control | Monochrome and color |
| Production capacity | up to 60.000 pieces/h with standard two-camera system up to 40.000 pieces/h with multi camera system up to 120.000 pieces/h with single camera |
| Interface | Ethernet for local or internet connections Full integration with the line |
| Protection | according to CE |
